Axtroid · Industrial Series

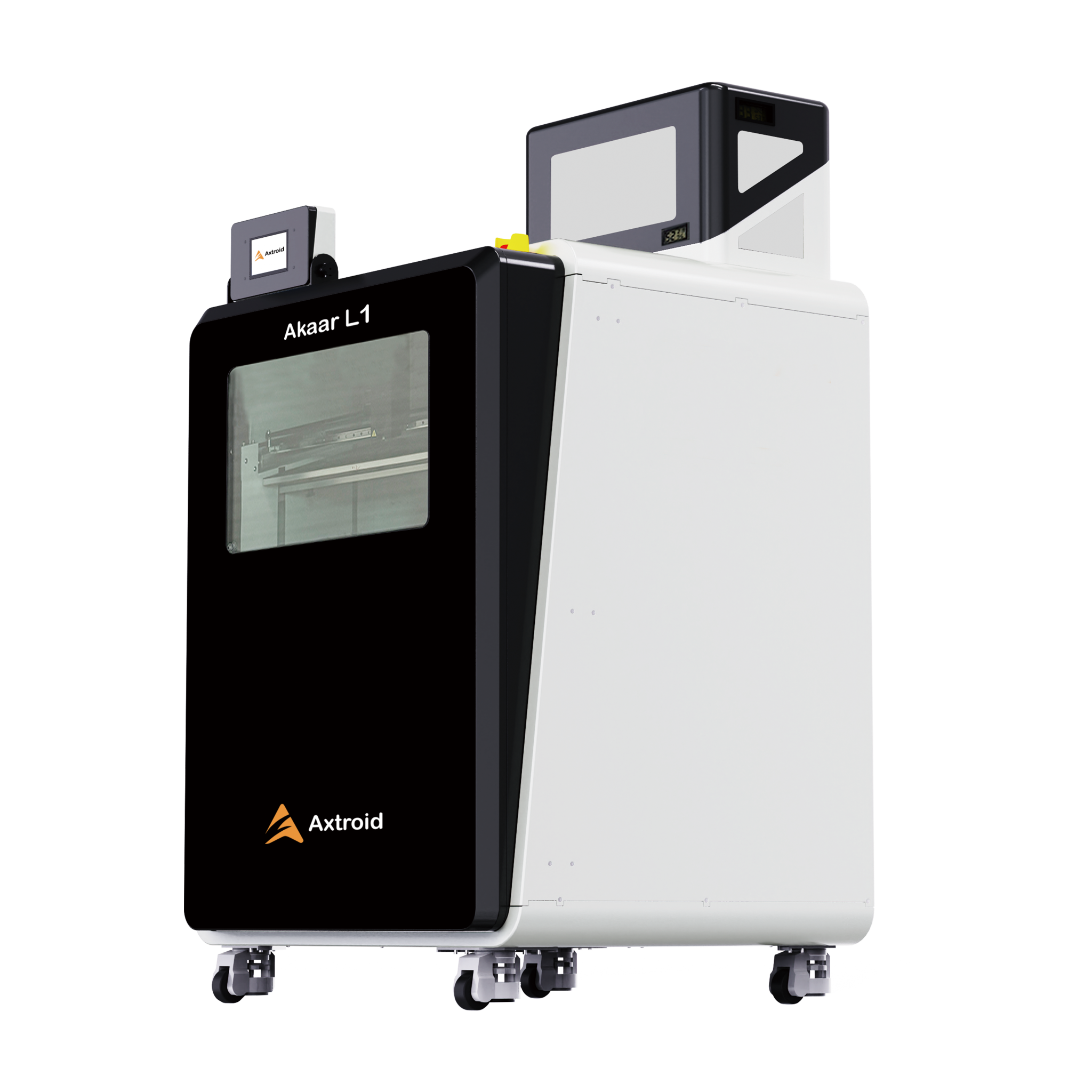

Akaar L1
Frame & Build
Industrial Grade 3D Printer
A rigid, industrial-grade frame designed for stability and reliability, ensuring consistent print quality even during high-speed, long-duration prints.

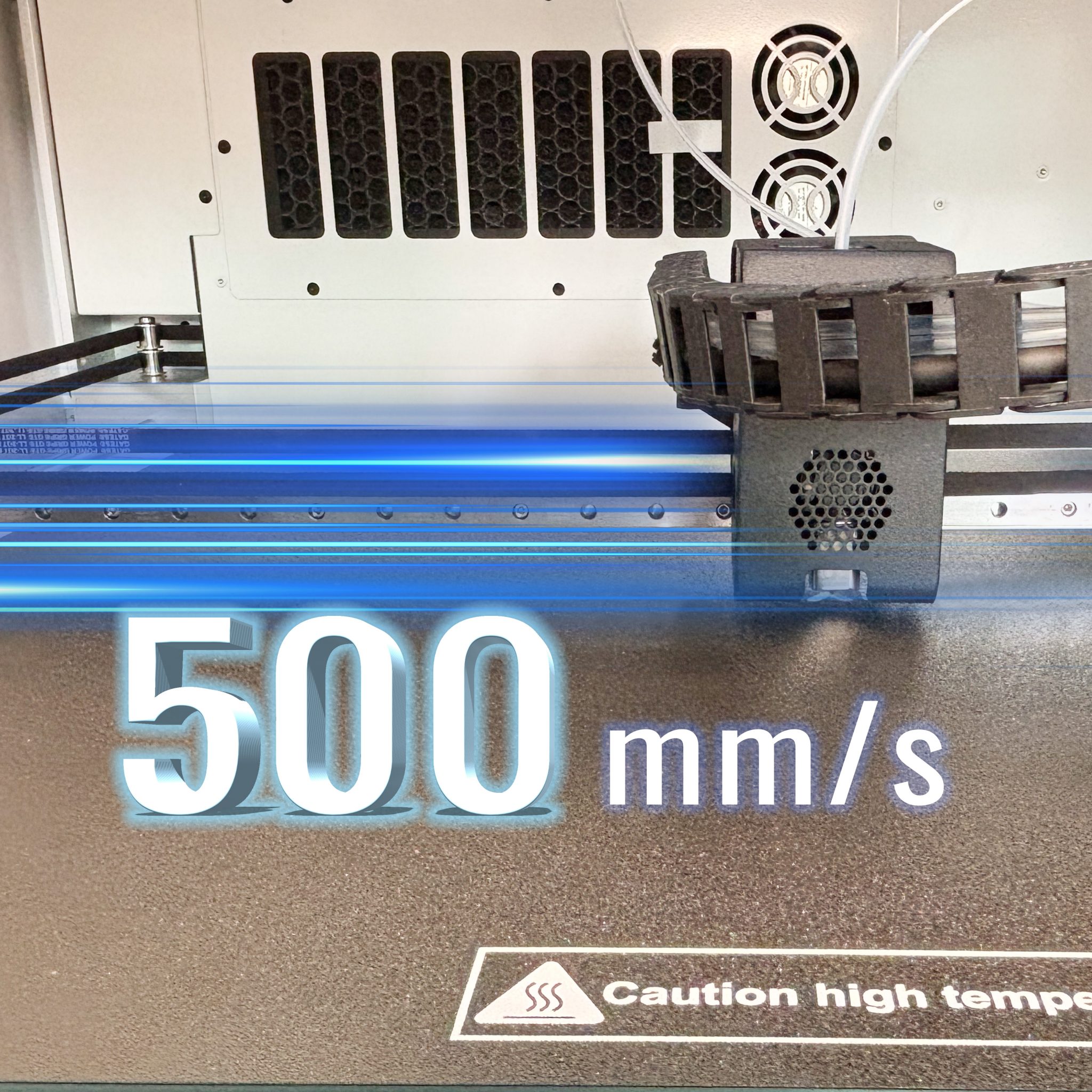

Speed & Performance
500 mm/s Ultra-High Speed Printing
Print large, complex parts rapidly with a motion system capable of speeds up to 500 mm/s, significantly reducing production time without compromising accuracy.

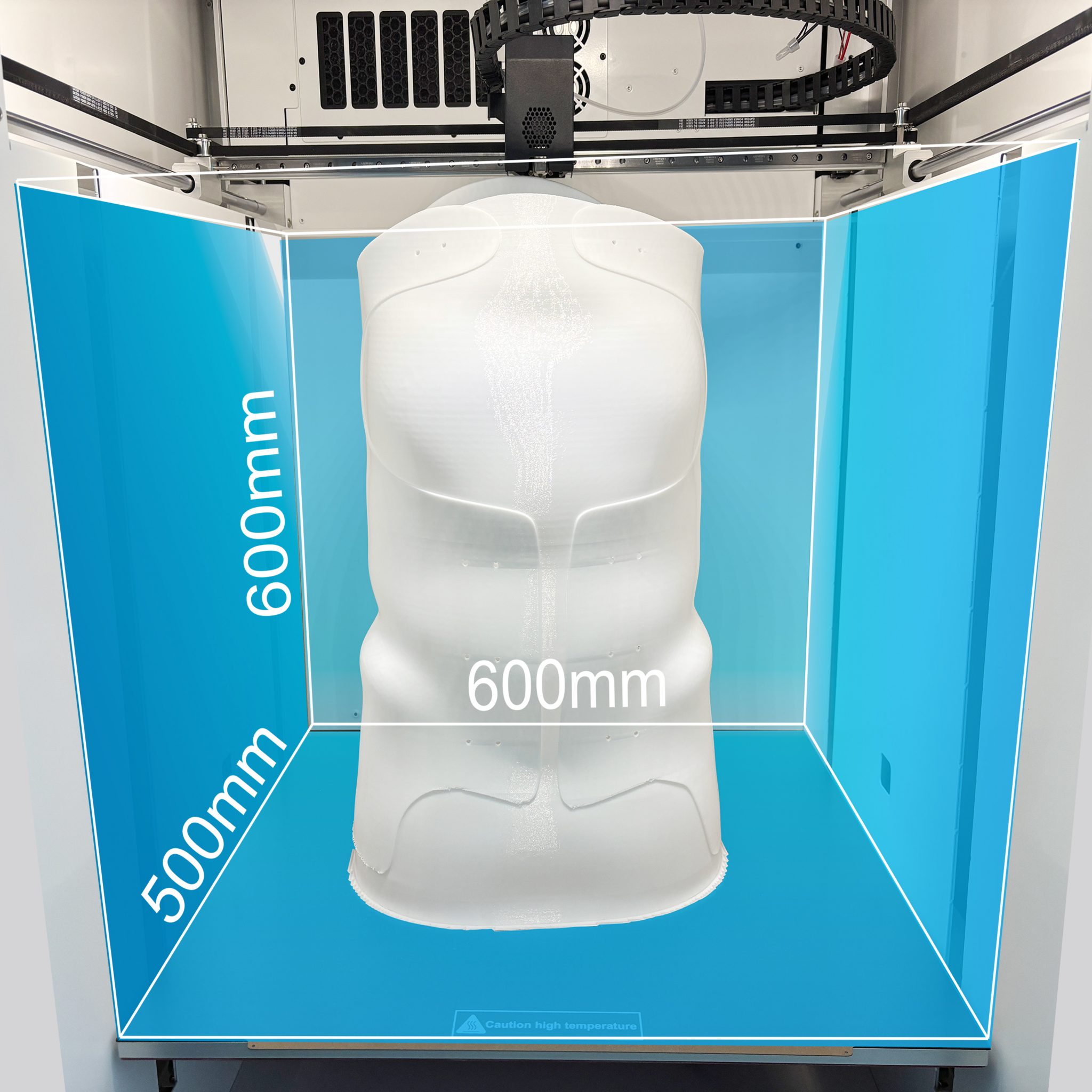

Build Volume
Large Build Volume
A spacious 600 × 500 × 600 mm build area enables printing of large single-piece components or multiple parts in one job, ideal for industrial and engineering applications.

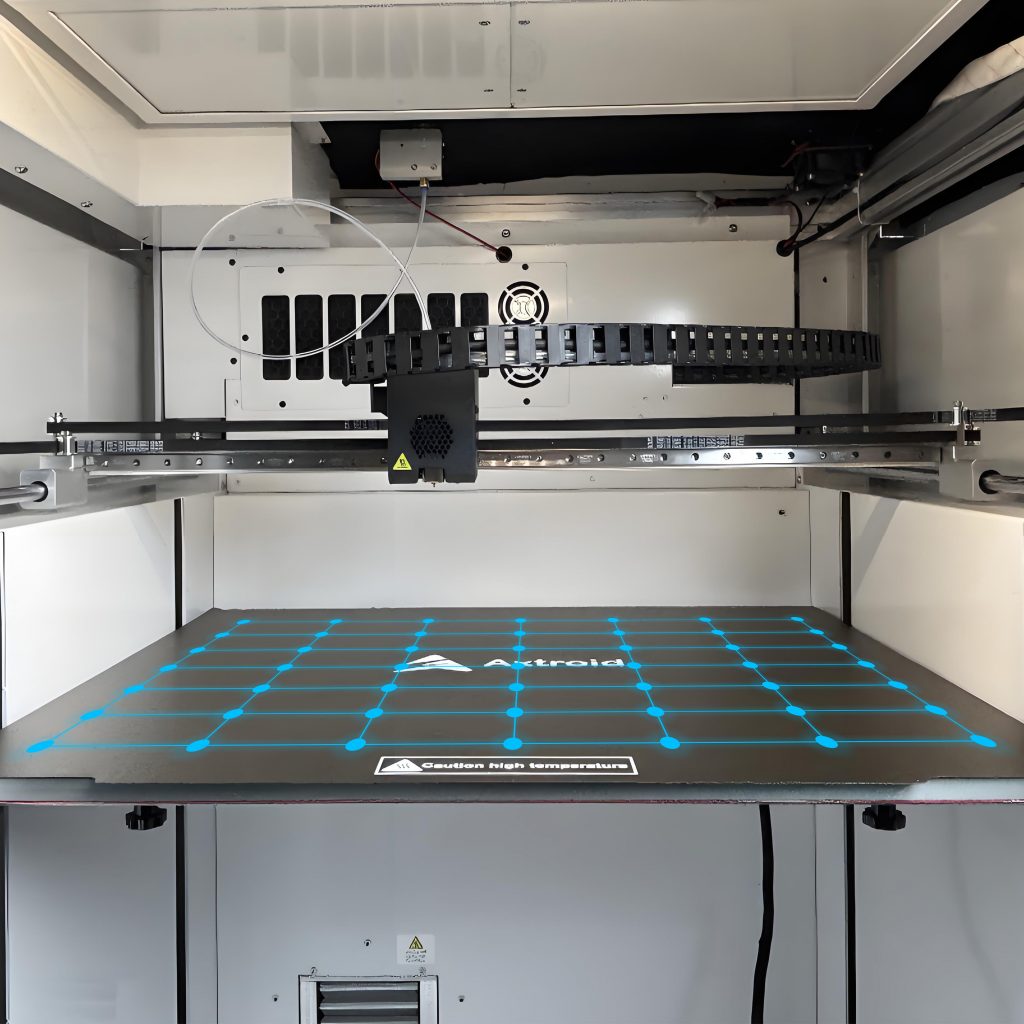

Bed Leveling
Automatic Bed Leveling
An intelligent auto-leveling system precisely calibrates the build surface before every print, ensuring perfect first-layer adhesion and repeatable results with minimal setup effort.

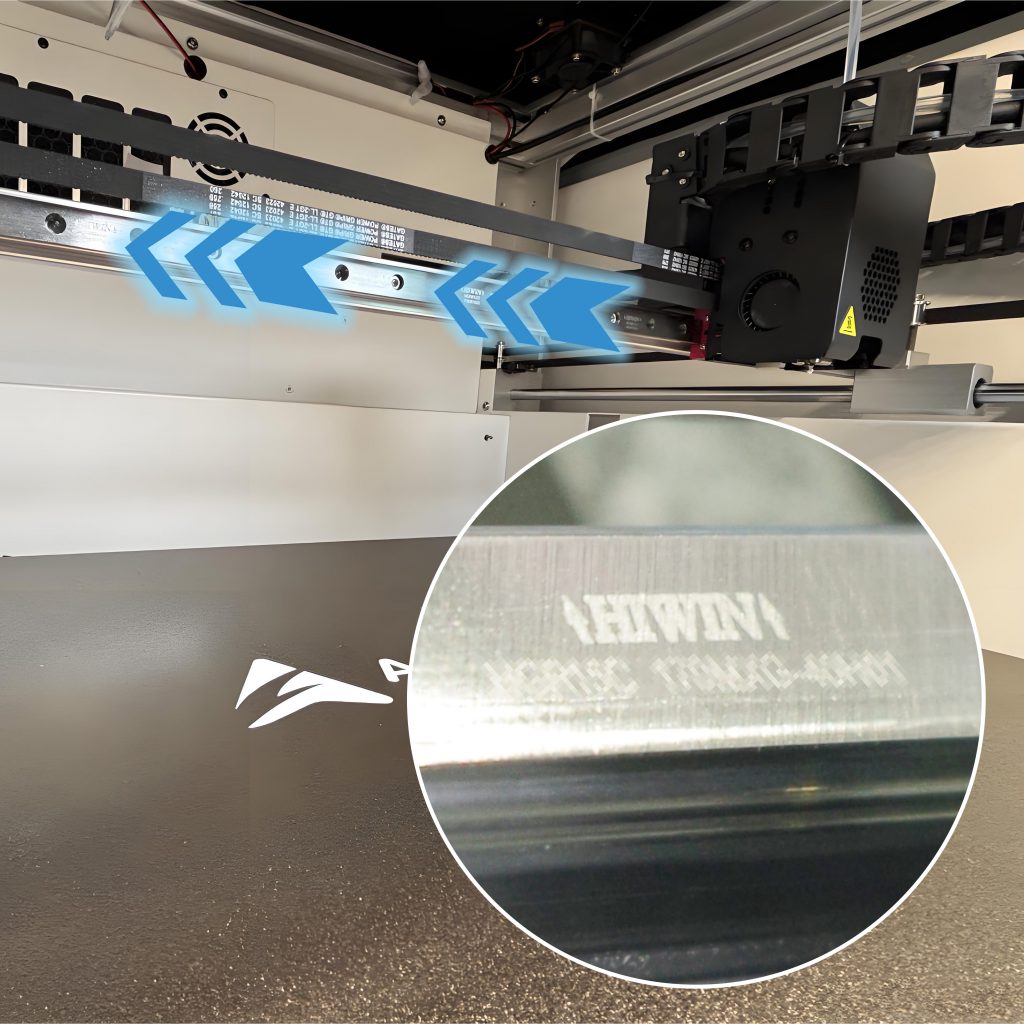

Motion System
High-Precision HIWIN Linear Guideways
Industrial-grade HIWIN linear guideways deliver smooth, accurate motion and exceptional positional stability, ensuring high precision and consistent print quality across the full build volume.

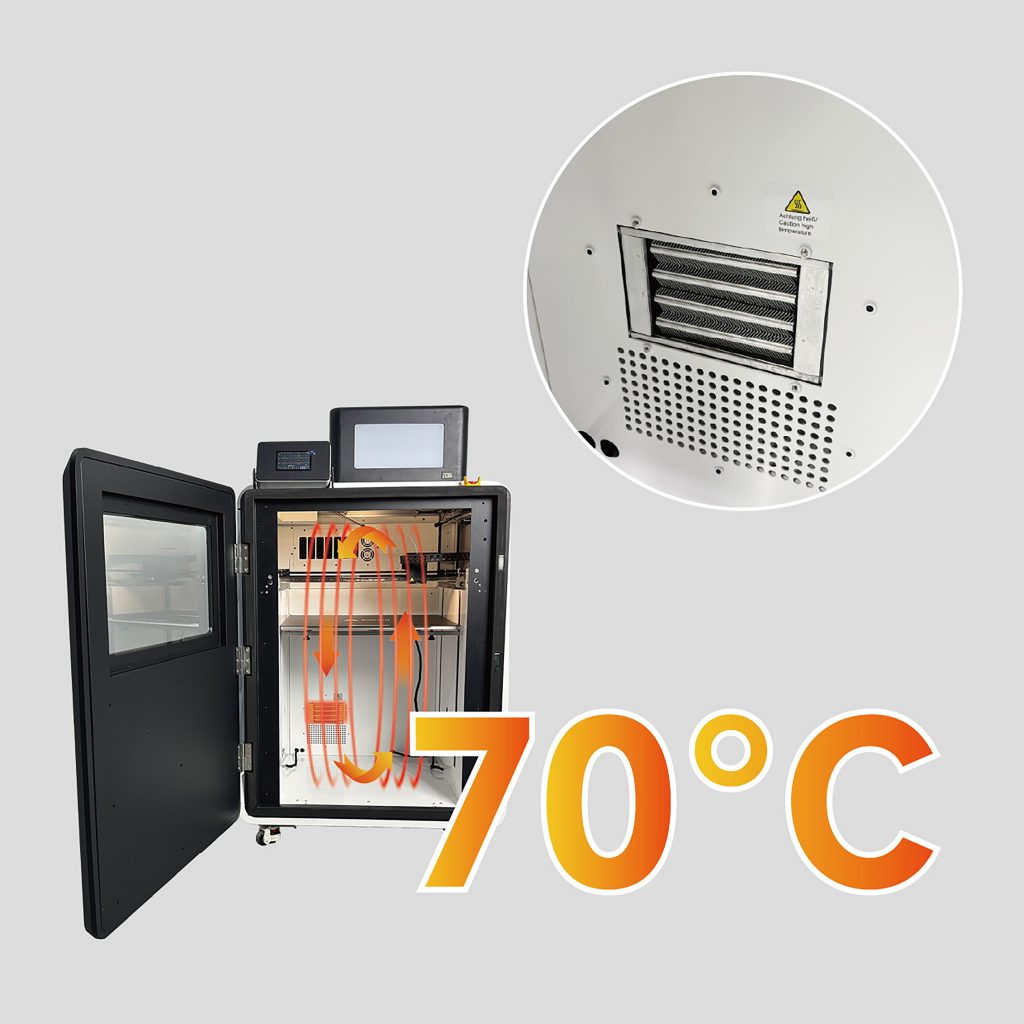

Build Chamber
Heated Build Chamber
A fully enclosed, temperature-controlled build chamber up to 70°C ensures dimensional stability and reliable printing of engineering-grade materials by minimizing warping and internal stress.

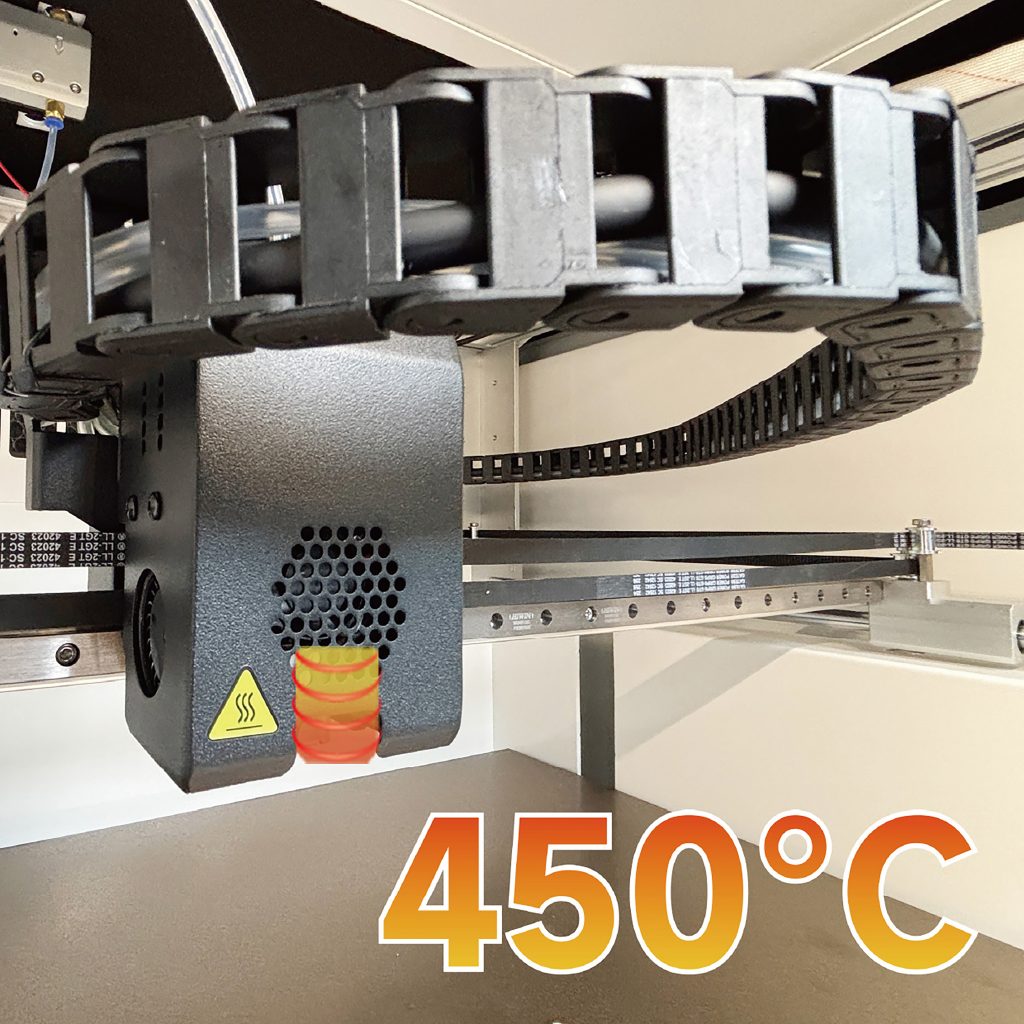

Material Compatibility
High-Temperature Nozzle
An all-metal, high-temperature nozzle capable of reaching 450°C enables reliable printing of advanced engineering and high-performance materials.

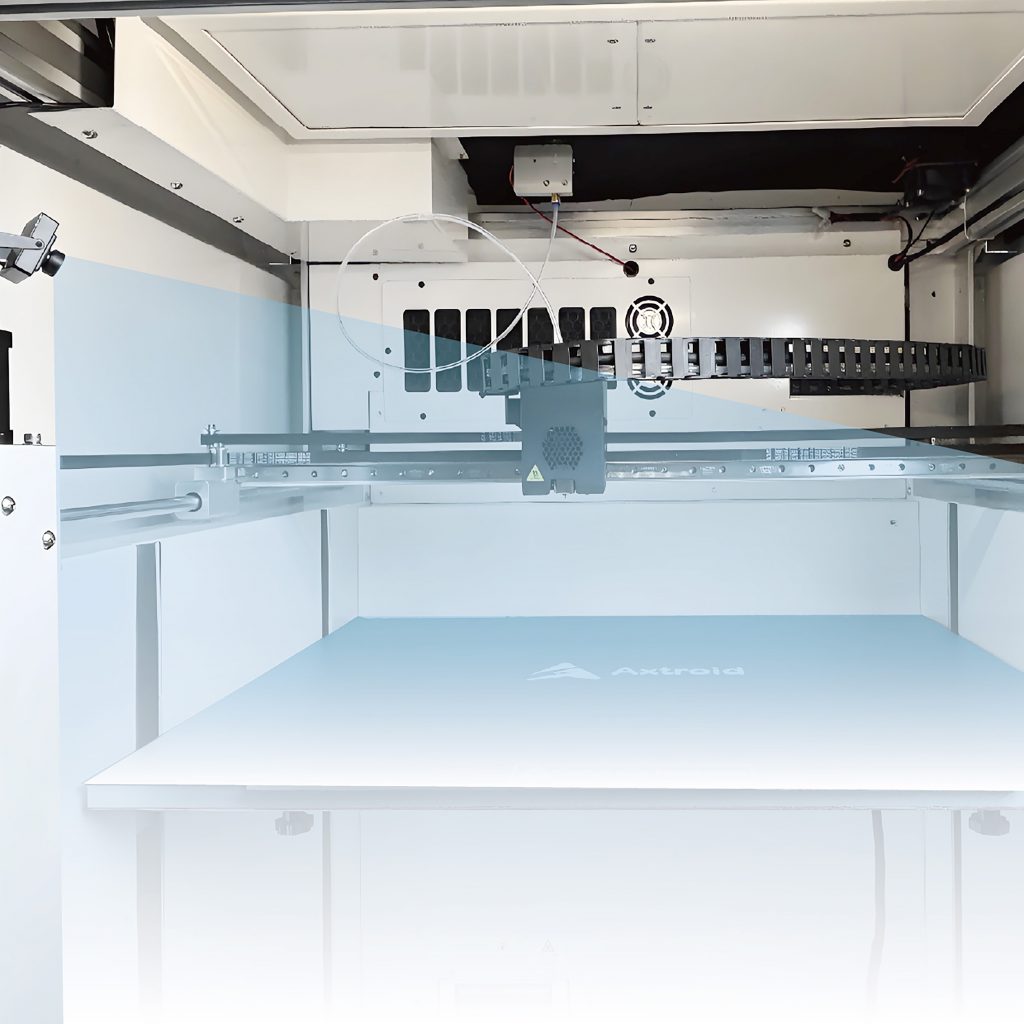

Remote Monitoring
Built-in Monitoring Camera
An integrated camera allows real-time remote monitoring of prints, helping users track progress, detect issues early, and improve overall print reliability.

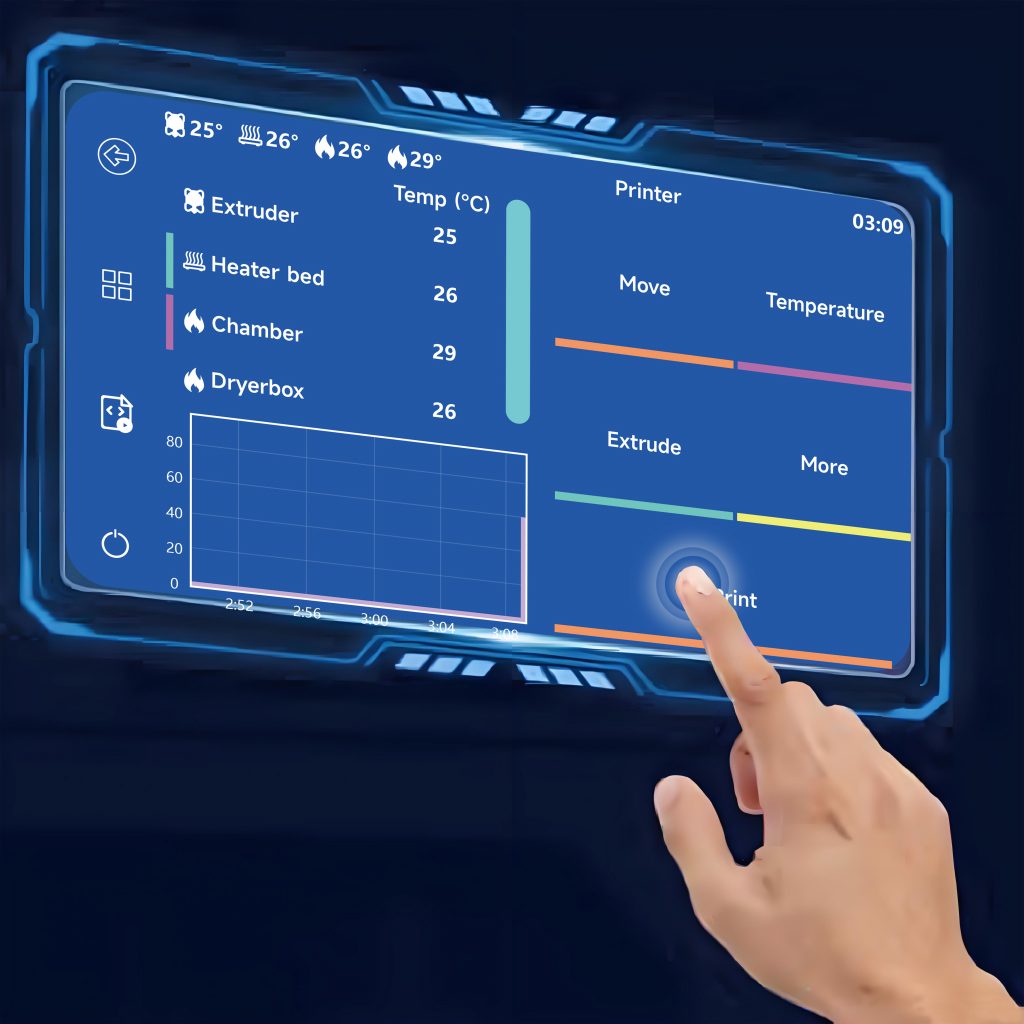

User Interface
Intuitive Touchscreen Interface
A responsive, full-color touchscreen provides simple, intuitive control over printer operations, settings, and job monitoring for a smooth user experience.

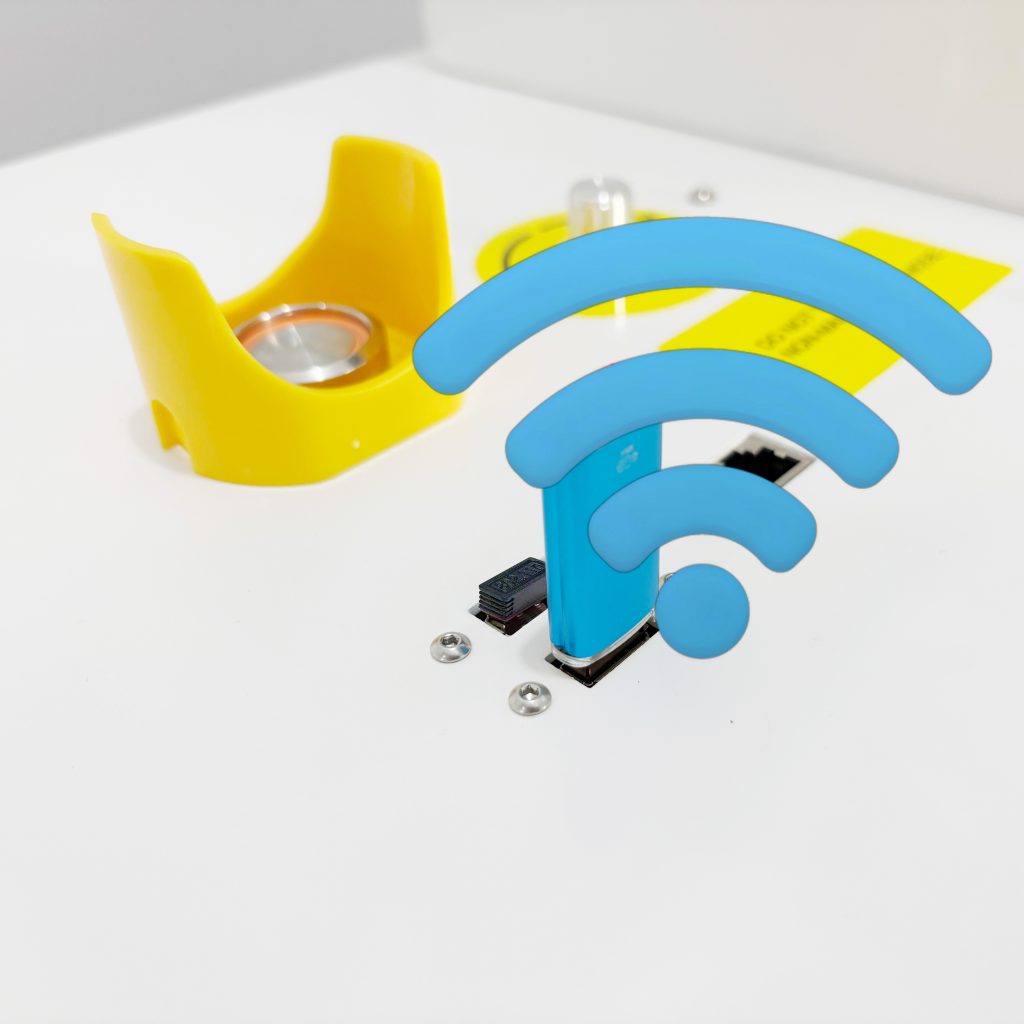

Connectivity
Flexible Connectivity Options
Support for USB, Wi-Fi, and Ethernet enables seamless file transfer and networked printing, making the printer easy to integrate into classrooms, labs, and production environments.

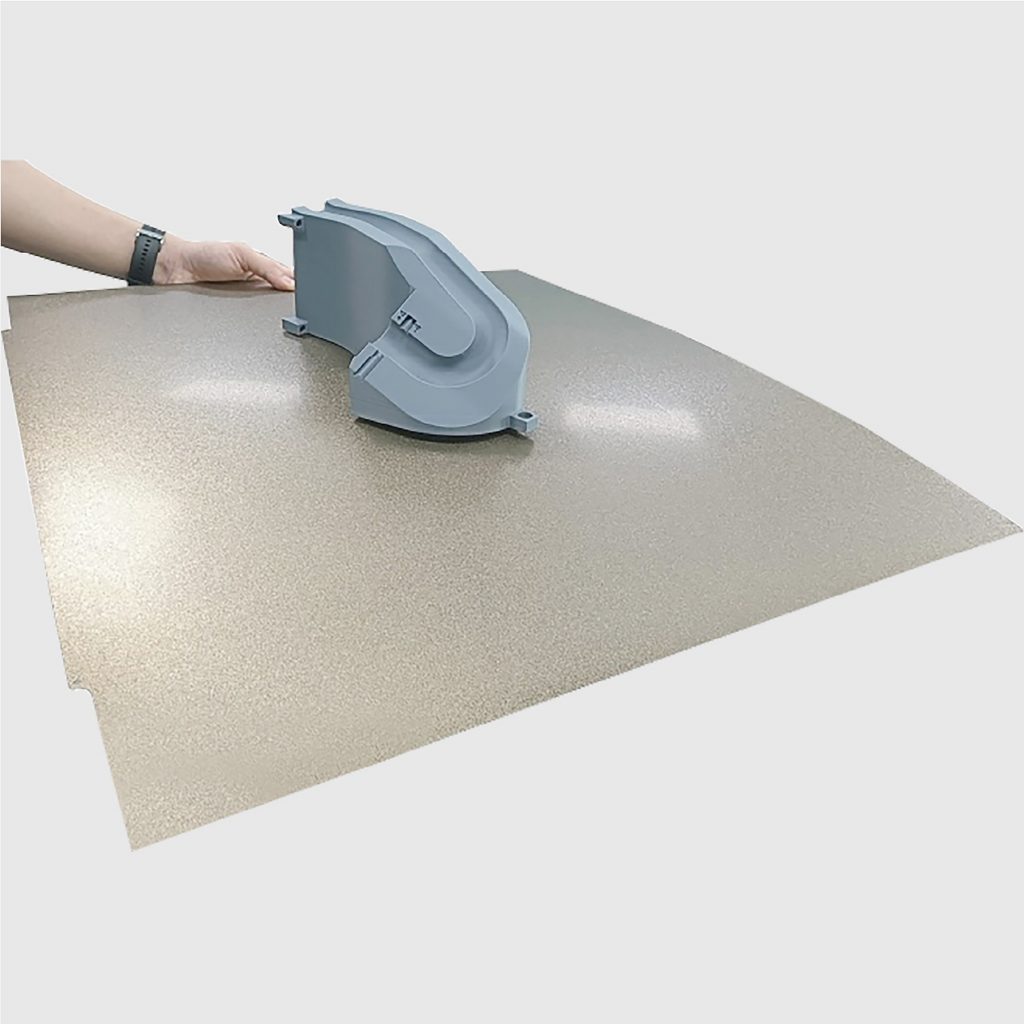

Build Surface
Double-Sided Flexible PEI Sheet
A durable, double-sided flexible PEI surface ensures excellent first-layer adhesion and effortless part removal across a wide range of materials.

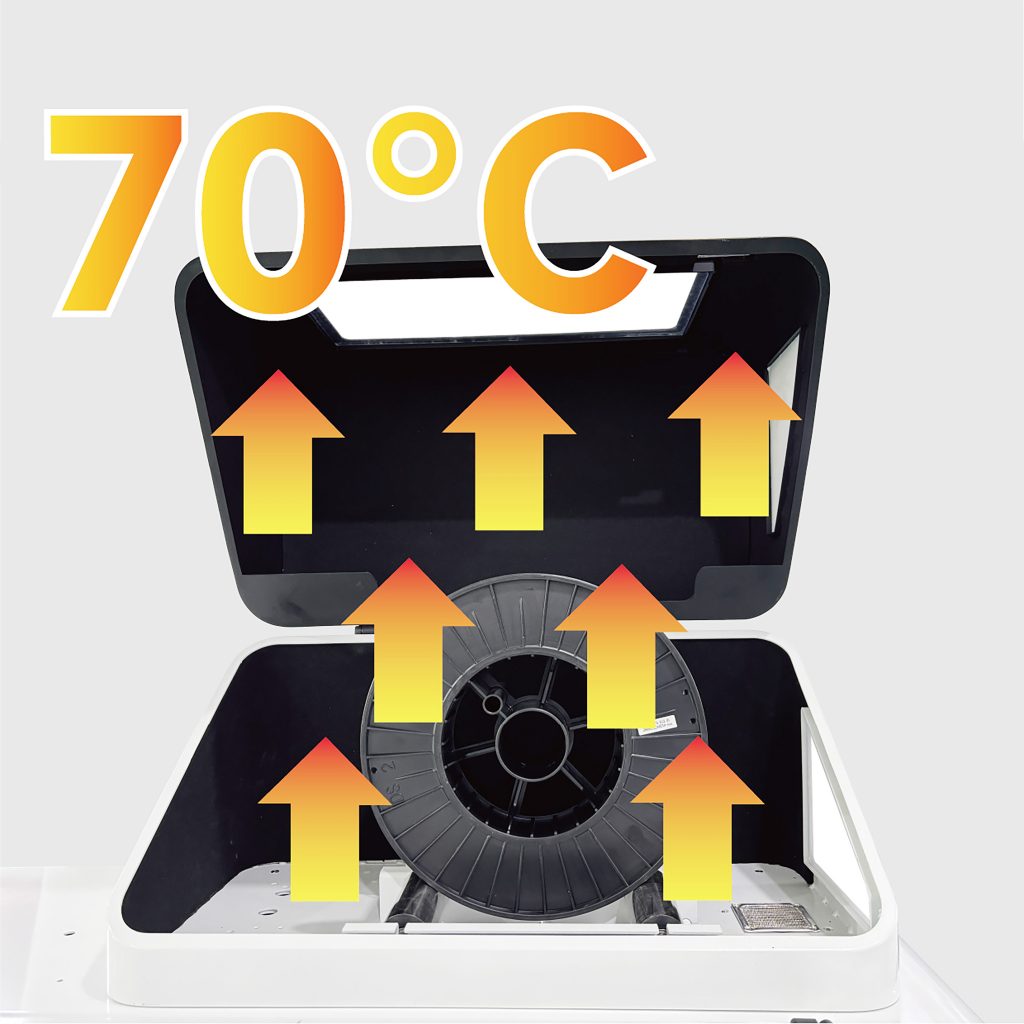

Filament Care
Integrated Filament Dryer
A built-in filament drying system up to 70°C keeps materials dry during printing, improving layer adhesion, surface quality, and reliability with moisture-sensitive filaments.

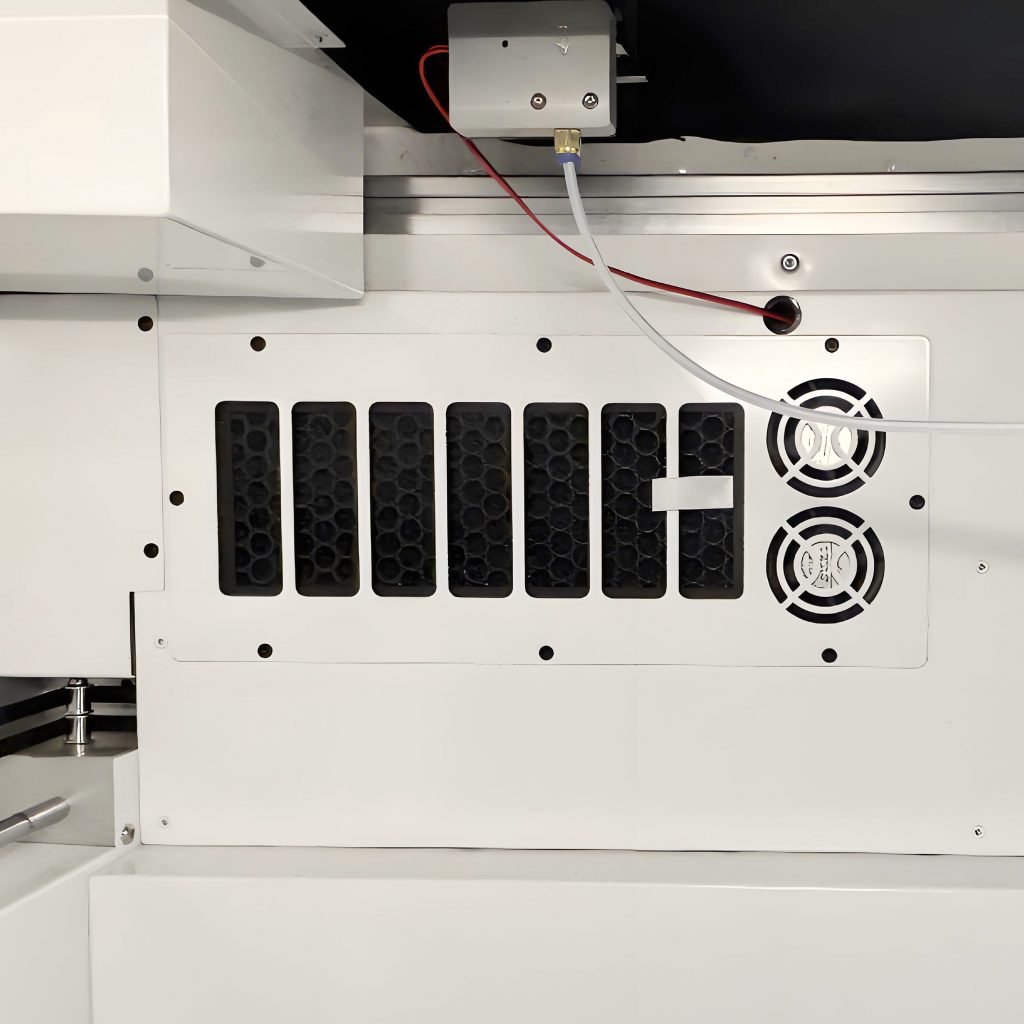

Safety & Air Quality
HEPA Filtration System
An integrated HEPA filtration system captures fine particles and emissions during printing, improving air quality and making the printer safer for classrooms and workspaces.
Full Details Technical Specifications
| Specification | Value |
|---|---|
| Technology | Fused Filament Fabrication (FFF) |
| Build Volume | 600 × 500 × 600 mm |
| Motion Structure | CoreXY |
| Number of Print Heads | 1 |
| Extruder Technology | Direct-Drive |
| Filament Diameter | 1.75 mm |
| Nozzle Diameter | 0.4 mm |
| Max Print Speed | 500 mm/s |
| Max Print Acceleration | 20,000 mm/s² |
| Print Accuracy | ±0.1 mm |
| Max Nozzle Temperature | 450 °C |
| Max Print Bed Temperature | 100 °C |
| Print Bed Leveling | 49-point mesh bed automatic leveling |
| Print Platform | Textured & Smooth Removable PEI Sheet |
| Connectivity | WiFi, USB Drive, RJ45, Type C, Modem |
| Power Input | 230V/110V 350W |
| Display Screen | 5-Inch IPS Capacitive Touch Color Screen (480 × 272 px) |
| Slicing Software | OrcaSlicer, Cura, Slic3r, Simplify3D, PrusaSlicer |
| Operating System | Windows, MacOS, Linux |
| Firmware | Klipper |
| Print File Format | G-Code |
| Print Materials | PLA, PETG, ABS, ASA, TPU, PC, etc. |
Interested in bringing this 3D printer to your workspace? Contact us today for product demonstrations, institutional partnerships, technical discussions, or sales enquiries. Our team is here to help you find the right solution for your needs.
