Axtroid · Industrial Series

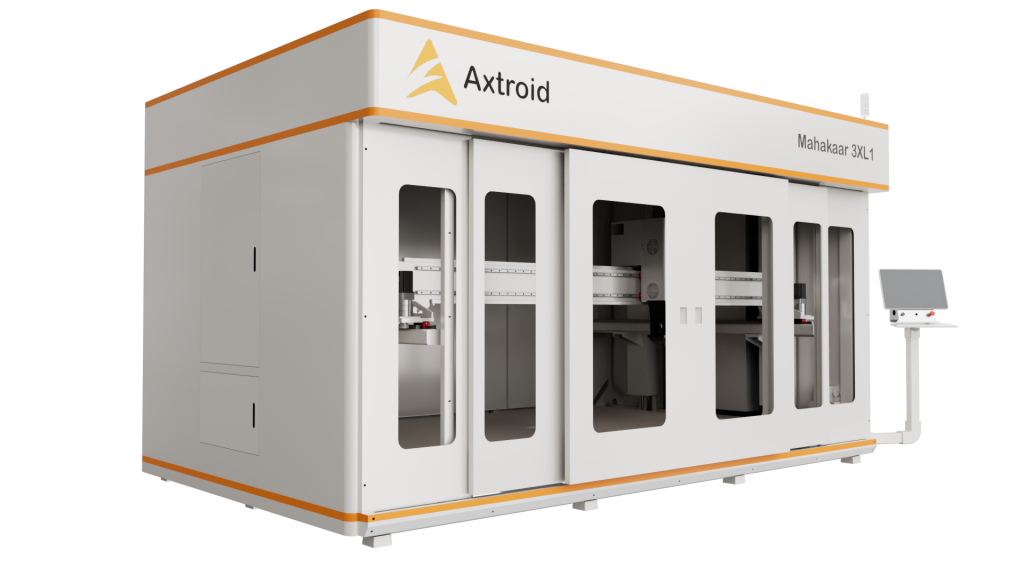

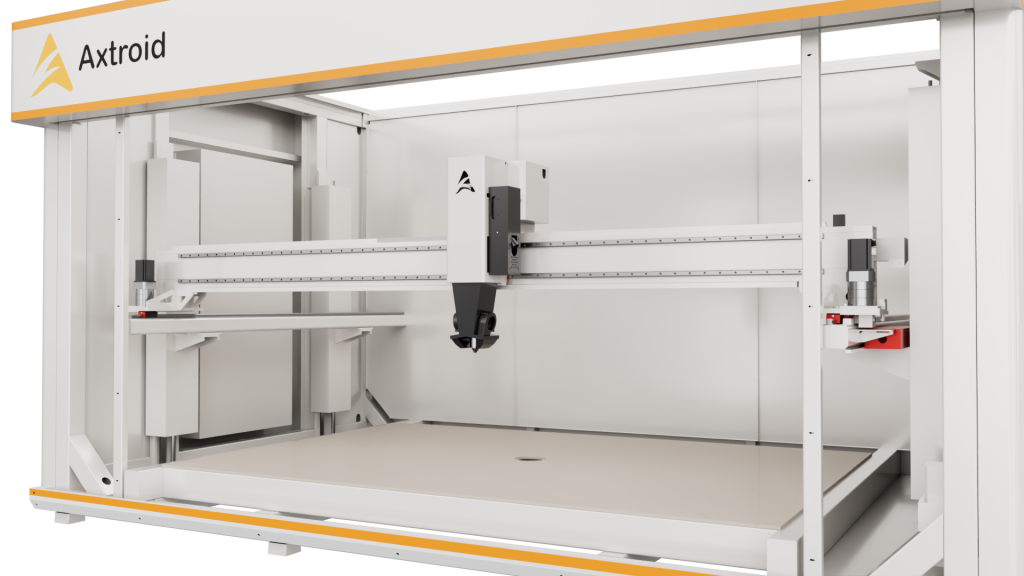

Mahakaar 3XL1
What sets it apart
Key Features
Massive Build Volume
Large-format build capacity enables production of oversized industrial components and full-scale prototypes.
Pellet Extrusion Technology
Direct pellet extrusion significantly reduces material costs compared to filament-based systems while supporting high material throughput.
High-Speed Industrial Printing
Industrial servo-driven motion systems and screw extrusion architecture enable rapid manufacturing of large components.
Industrial Screw Extrusion System
Advanced screw extrusion mechanism provides stable material flow, consistent extrusion, and high-efficiency printing.
High Material Throughput
Supports extrusion rates up to 8 kg/h for fast large-format production.
Wide Material Compatibility
Compatible with a broad range of thermoplastic pellet materials including engineering-grade polymers.
Industrial Motion System
Servo motor-driven architecture combined with precision transmission systems ensures stable and accurate movement.
Heavy-Duty Steel Construction
Industrial welded steel frame designed for rigidity, reliability, and long-term operational stability.
Automatic Feeding System
Integrated automatic feeding and vibration-assisted material handling system for uninterrupted printing.
Use Cases
Applications
Large-Scale Prototyping
Produce full-size prototypes for industrial design validation and functional testing.
Tooling and Molds
Manufacture molds, patterns, fixtures, and tooling components for industrial production.
Automotive Components
Suitable for production of large automotive parts, trims, tooling, and manufacturing aids.
Furniture and Interior Applications
Create customized furniture elements, decorative structures, and architectural components.
Composite and Engineering Structures
Ideal for industrial research involving reinforced thermoplastic materials and composite manufacturing.
Industrial Product Development
Accelerate development cycles with rapid production of large functional components.
Research and Innovation Labs
Suitable for universities, advanced manufacturing labs, and industrial R&D environments.
Full Details Technical Specifications
| Specification | Value |
|---|---|
| Technology | Fused Granular Fabrication (FGF) |
| Build Volume | 3000 × 2000 × 1300 mm |
| Mechanical Structure | Industrial Welded Steel Frame |
| Motion System | Servo Motor Driven |
| Transmission System | Gear Rack/Precision Screw + Linear Guide |
| Screw Diameter | 20 mm |
| Heating Sections | 3 Sections |
| Maximum Heating Temperature | 350 °C |
| Rated Heating Power | 1.8 kW |
| Extrusion Motor | 750W Servo Motor with Precision Planetary Reducer |
| Maximum Extrusion Volume | 8 kg/h |
| Printhead Diameter | 3–5 mm |
| X/Y Maximum Working Speed | 200 mm/s |
| Z Maximum Working Speed | 10 mm/s |
| Repeat Positioning Accuracy | ±0.15 mm |
| Raw Material Form | Thermoplastic Pellets |
| Data Transmission | Ethernet, USB, Wi-Fi |
| Slicing Software | OrcaSlicer |
| Automatic Feeding System | Included |
| Input Voltage | 380V 3P, 50/60Hz |
| Optional Drying System | 50 kg Drying System |
Interested in bringing this 3D printer to your workspace? Contact us today for product demonstrations, institutional partnerships, technical discussions, or sales enquiries. Our team is here to help you find the right solution for your needs.
